Chris' '90 Toyota Celica
All-Trac Turbo
(aka "The
Shuttle") Twin-Coil Waste-Spark Ignition |
Updated: September 25, 2017 |
|
|
|
Along with two coils comes the need for two igniters. So, I fabbed-up a mount from upon which I mounted both igniters to the firewall in the right-rear corner of the engine compartment. This required running another wire from the Autronic SMC to the second for use in firing the second igniter.
As you can see in the photos, I've had the strut brace and igniter mount powder-coated the same bright blue which exists on other random bits under the hood.
 And,

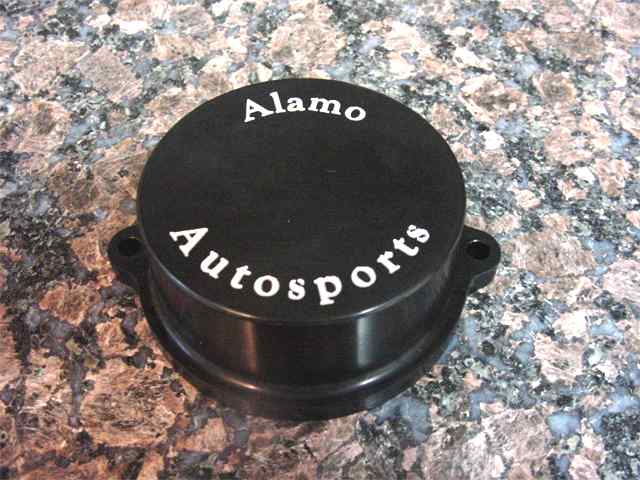

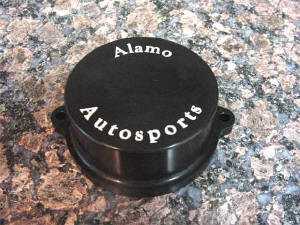

since I no longer use the traditional distributor cap or rotor, I have one
of these trick aluminum relacement caps from Alamo Autosports.
|
 |
Return to The Shuttle's home page |
|
|
Return to The Shuttle's Current Mods page |
Always looking for ways to improve my existing
ignition system, I've decided to ditch the Crane Hi-6R and PS92 coil in favor of
a twin-coil waste-spark setup. This will eliminate the use of the
distributor cap and rotor in the ignition system as the two-coil setup uses each
coil to fire two cylinders simultaneously, cylinders 1 & 4 and 2 & 3,
respectively. The coil I'm using is a stock late-model Mitsubishi coil
from a Lancer EVO and Eclipse Turbo. I welded the Mitsu coil-pack's bracket onto the stock

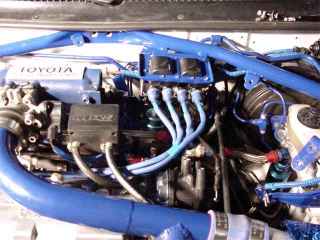

strut-brace in a location just above and behind the distributor. As
you can see in the photos, this
allowed me to simply unplug the spark-plug wires from the distributor cap and
insert them into the coil-pack. Cool, no? Once again, easy and simple is the
key.
