Chris' '90 Toyota Celica All-Trac Turbo (aka "The Shuttle")
Turbo System - Turbo Header
Updated: September 25, 2017

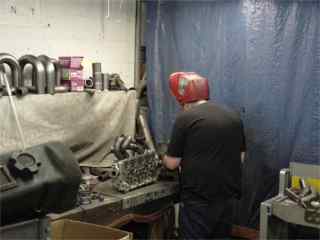

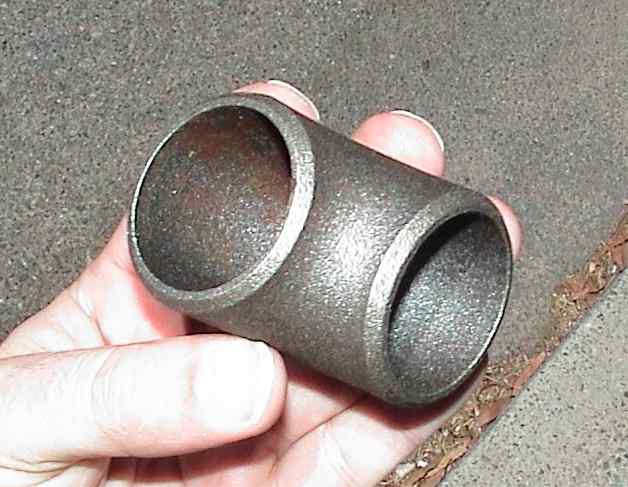

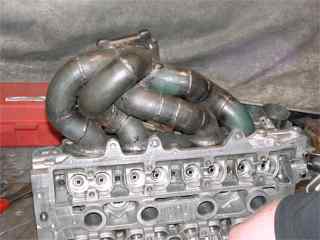

This is the header Brice at Alamo Autosports built for me for the Turbonetics T04E-50.  It's fabricated with 1.5" ID weld-el plumbing material.  A piece of steel was welded between the two flanges together to allow fabrication on the workbench; it was later removed after completing a couple tubes.  The dude in the red welding hat is  Craig, Alamo's fabricator extraordinaire.  Each piece was custom-fit and tack-welded into place.  Once pieced together, all joints were TIG welded with a high-nickel rod with the header bolted to the head to ensure the flange did not warp from the heat.

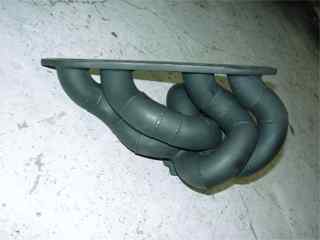

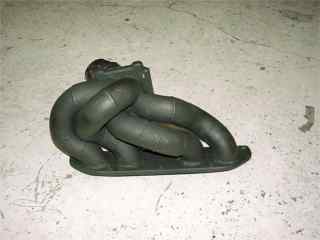

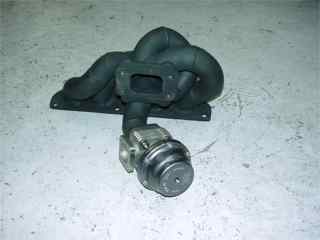

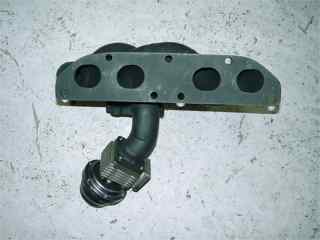

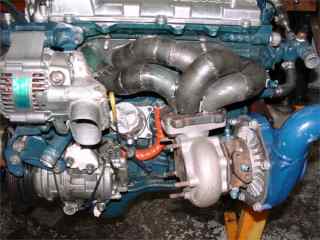

The following photos show the final product after cryo treatment and ceramic coating.
