The exhaust system consists of a turbo header, and a complete 3" exhaust from down-pipe to muffler. Everything was fabricated by the folks at Alamo Autosports.  Several v-bands were utilized at convenient points to section the exhaust pipe into manageable pieces.  Everything in front of the flexi joint, which is directly under the rear transmission mount, was ceramic coated.  We also fabricated a "test" pipe to replace the Random Technologies 3" catalytic converter, on those special occasions.

The turbo header is well documented in the link above, however, photos of the down-pipe and remainder of the exhaust system are posted below.

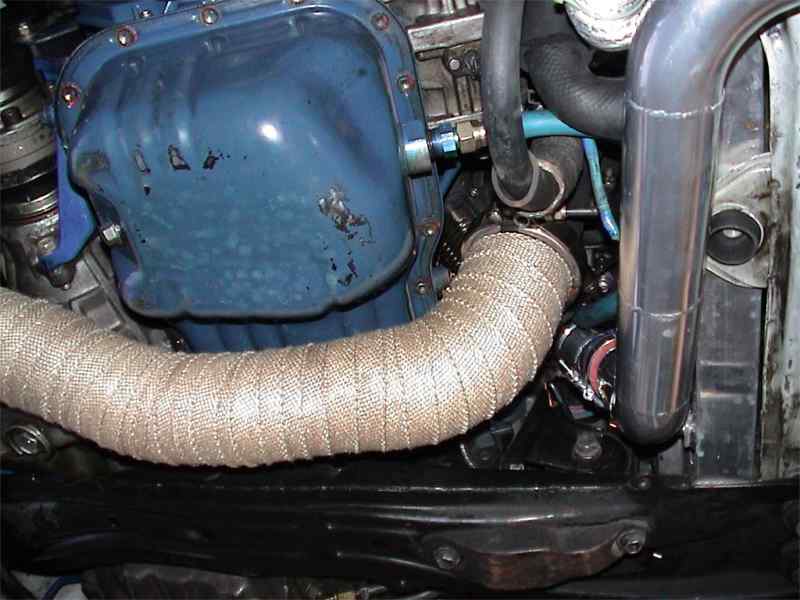

3" Down-pipe with wastegate dump

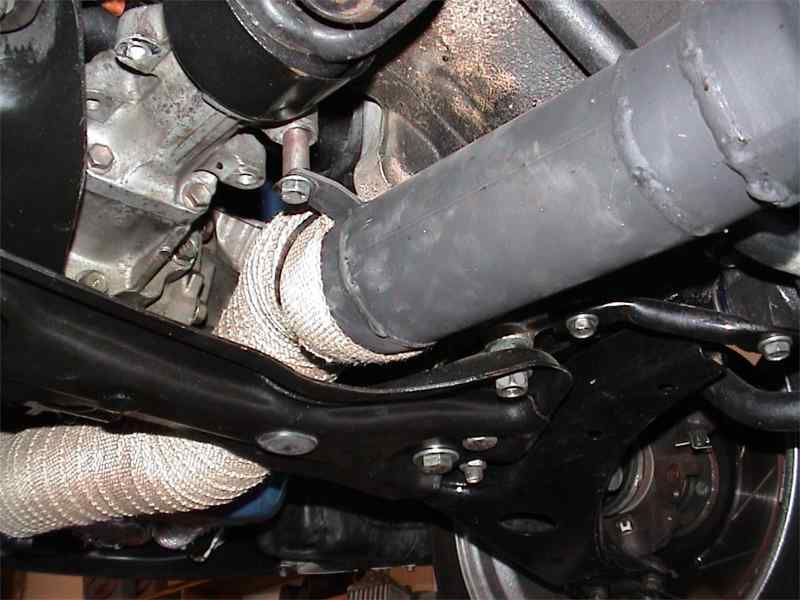

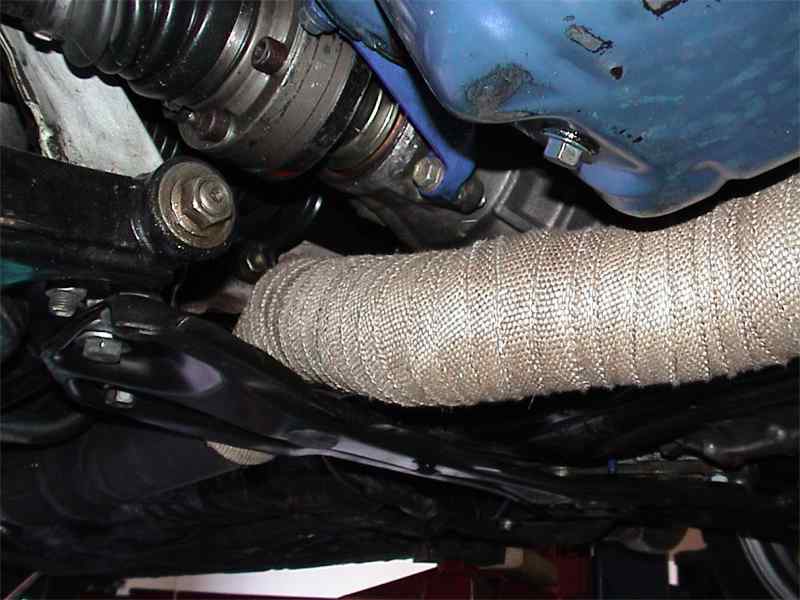

From down pipe to just under the engine	Frontal view of exhaust over the cross-member	Looking at exhaust from rear of cross-member

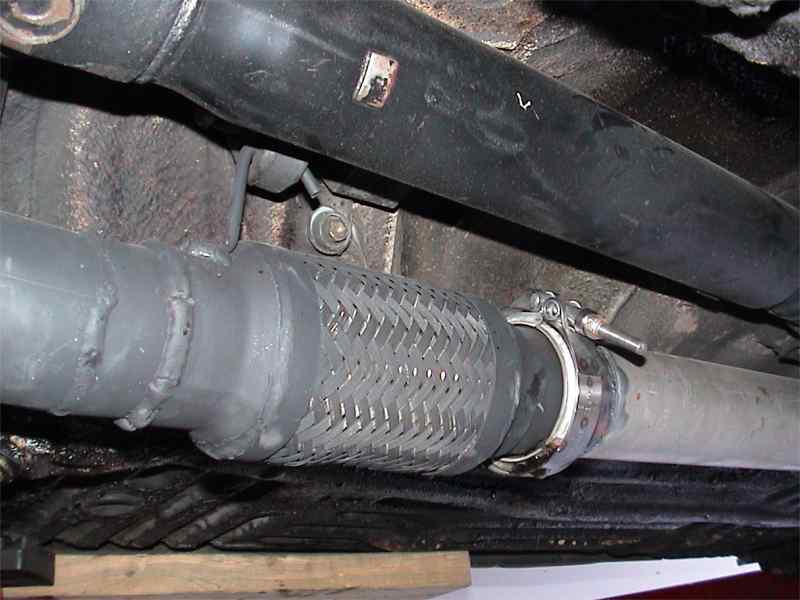

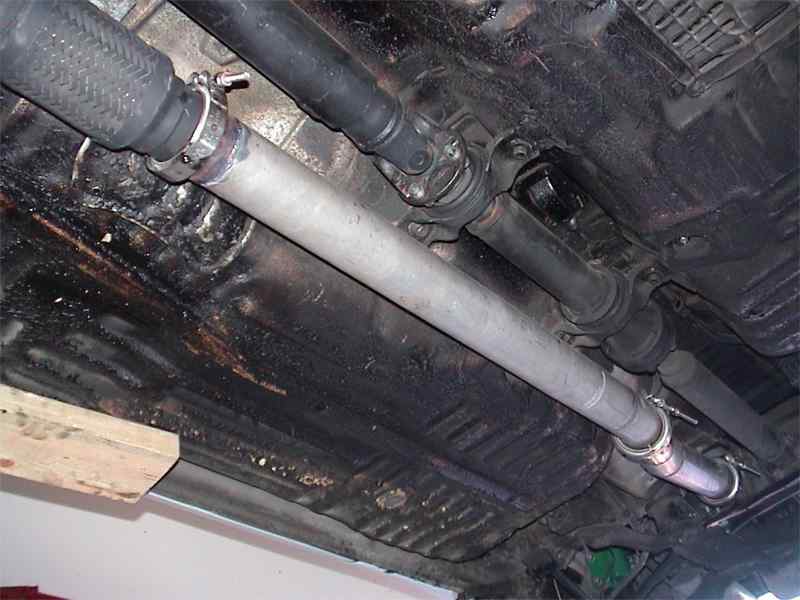

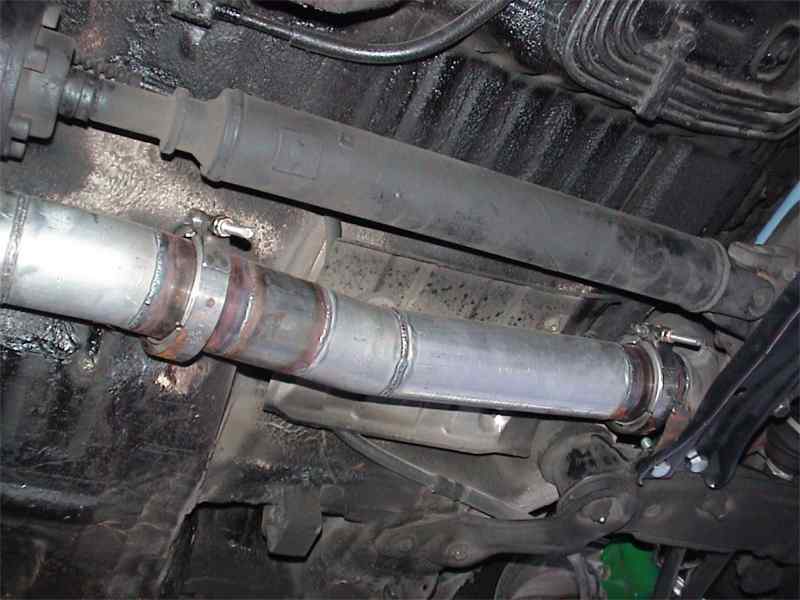

Flexi is placed just behind the transmission	Down-pipe to the flexi is ceramic coated	cat "test" pipe - for testing purposes only

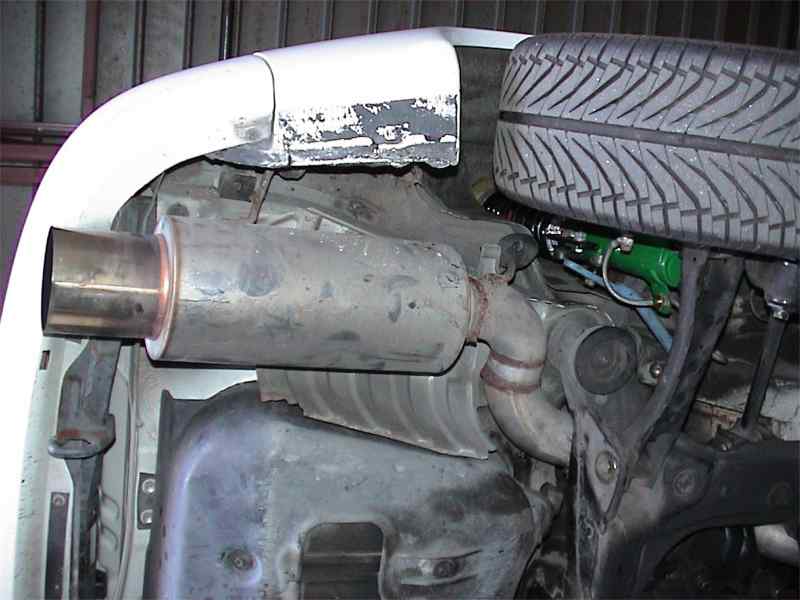

View of the muffler from underneath
