Chris' '90 Toyota Celica All-Trac Turbo (aka "The Shuttle")

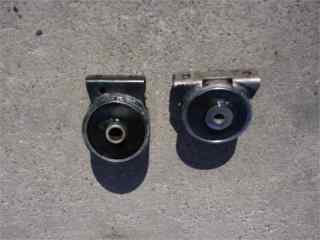

Safety Mods - Reinforced Engine Mounts
Updated: September 25, 2017

I used the 80A durometer urethane casting goop (part number 8644K11) from www.mcmaster.com.  This is a two-component system that comes pre-measured - you simply combine both components, mix thoroughly, then pour.  I used good ole duct tape to seal-up one side of each engine mount, laid the engine mounts horizontally, then poured the urethane solution into the open side of the mount.  About an hour to 90 minutes later, the urethane goop had set-up to a gummy, jello-like consistency, which allowed me to remove the duct tape.  The urethane requires several days to fully cure, so, they were no reinstalled until the casting good had fully cured.
